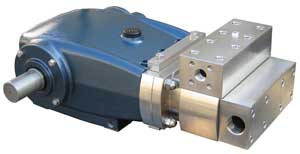

HIGHPRESSURE PUMP

Features

•Cooling (Non lubrication and free from water leakage)
If any water leaked from the A-seal provided in the high-pressure side, the leaked water is so designed as to stop in the B-seal provided in the low-pressure side, Then, the leaked water will return to the suction-side. As a result, the water is not leaked out externally.

•Ceramics (Replaceable)
A fine ceramic plunger is featured by less abrasion. In other words, the applicable gland seals can be serviceable for a long period of time. The fixing and centering of the ceramic is carried out by using complete sealing and locking agents.

•High-grade-packing (Longer service lift type)
The Gland packing section is used with high-quality packing consists of Ｔ・Ｎ・Ｂ composition. Because a back-up system is adopted, effective packing performance can be carried out against high-pressure.

•Direct drive (Centering is procurable easily)
Type Ad and type D are provided with a complete center procurement mechanism, which are connectable directly with .an engine or a motor.
The above driving system is designed exclusively for high-speed. However, However, the speed can be reduced by means of a pulley speed reducer.

Type

Type	Rotating speed rpm	Suction water amount Ｌ/min	Pressure MPa	Required power KW	Oil amount L	Weight Kg	Water suction port	Water delivery port	Shaft diameter mm	Key mm	Overall dimensions Length x Width x Height (mm)
A-713	1100	12.9	6.9	1.9	0.35	6	1/2	3/8(1/4)	18	5X5	237X231X147
A-1013	1100	12.9	9.8	2.3	0.35	6	1/2	3/8(1/4)	18	5X5	237X231X147
A-722	980	22.0	6.9	3.2	0.63	10	1/2	3/8	18	5X5	308X256X176
A-1018A	1000	18.1	9.8	3.8	0.63	10	1/2	3/8	18	5X5	308X256X176
A-1035	880	35.0	9.8	7.1	1.1	20	1	3/4	25	7X7	366X322X225
A-1520	850	20.0	14.7	6.1	1.1	20	1	3/4	25	7X7	366X322X225
A-1535	880	35.0	14.7	10.7	1.1	20	1	3/4	25	7X7	366X322X225
A-2120	850	20.0	20.0	8.2	1.1	20	1	3/4	25	7X7	366X322X225
A-2125	850	24.3	20.0	10.1	1.1	25	1	3/4	25	7X7	366X322X225
A-770	650	72.8	6.9	10.6	2.3	35	1 1/4	3/4	30	7X7	504X407X269
R-1050	700	50.0	9.8	10.2	2.3	32	1 1/4	1/2 3/4	30	7X7	500X408X240
R-8110	600	110.0	9.8	22.5	5.5	75.5	1 1/2	1	50	14X7	637X520X287
A-7150	650	157.0	7.0	22.9	5.5	76	2	1	50	14X9	637X520X287
R-2150	600	54.0	20.0	22.1	5.5	102	1 1/4	3/4	50	14X9	637X520X287
AD-1011F	1800	11.2	9.8	2.3	0.35	6.5	1/2	3/8	18	5X5	233X205X125
AD-708	1800	7.9	6.9	1.1	0.35	6	1/2	3/8	18	5X5	237X231X122
AD-1008	1800	7.7	9.8	1.6	0.35	6	1/2	3/8	18	5X5	237X231X147
AD-711	1800	11.2	6.9	1.6	0.35	6	1/2	3/8(1/4)	18	5X5	237X231X122
AD-720	1800	19.3	6.9	2.8	0.63	9	1/2	3/8	20	5X5	308X256X138
AD-1015	1800	15.6	9.8	3.2	0.63	9	1/2	3/8	20	5X5	308X256X138
AD-740	1800	42.6	6.9	6.1	1.1	20	1	3/4	25	7X7	366X269X160
AD-1030	1800	32.0	9.8	6.5	1.1	20	1	3/4	25	7X7	366X269X160
D-2114	1800	13.7	20.0	5.9	0.6	13.2	1/2	3/8	20	6X6	315X260X172
D-2116	1800	16.0	20.0	7.2	0.6	13.2	1/2	3/8	20	6X6	315X260X172
D-2120	1800	20.0	20.0	8.7	0.6	13.2	1/2	3/8	20	6X6	315X260X172
D-3511	1800	11.0	34.3	7.9	0.6	13.4	1/2	3/8	20	6X6	315X260X172

Pump exclusively designed for special applications

Our High Pressure Pumps are featured by ceramic materials and longer service lifetime.
In addition, the following pumps are also manufactured:

Stainless steel high pressure pumps and wetted parts are all manufactured by using SUS materials.
Aluminum and bronze high-pressure pumps and wetted parts are all manufactured by ＡＬＢＣ materials and ＳＵＳ materials.
Seals used for the wetted parts are manufactured by using NBR (Nitrile rubber) and Fluoro rubber..
