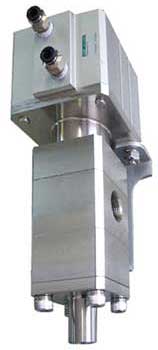

Tokupi Co., Ltd.　Ultra-high-pressure changeover valve

Fuel feeder

High-pressure coolant

High-pressure Cleaner

Miniaturization of pump by changing over of valve

Withstand the contamination-contained-water

Corrosion resistance and abrasion resistance

Use of ultra-pure-water is OK

Longer service lifetime

Ultra-high-pressure fluid/Large-capacity fluid can be changed over instantaneously

Features

•Exclusively designed High-pressure seals and spools are manufactured by ceramics, thereby longer service lift time can be materialized.
•A small amount of contamination contained liquid can be used.
•Because major parts are manufactured by using stainless steel, the valves are superior to corrosion-proof and abrasion-proof.
•Installation posture can be free.
•The High-pressure seals can be manufactured by using High polymer polyethylene. Ultra-pure-water can be also processed.

仕　様

Type	TSV-20H
Normal working pressure	35 MPa
Maximum working pressure	50 MPa
Rated delivered water amount	100 L/min
Maximum pass through water amount	300 L/min
Required air pressure	0.4 MPa(In case of 35MPa)
Dimensions of outside diameter	135mm×105mm×280mm
Installing port size	Rc1/2
Body materials	SUS304+Ceramics
Mass weight	7.7 kg

Major uses

•Changeover of High-pressure Coolant
•Changeover of High-pressure cleaning liquid
•Unloader valve
•Miniaturization of pump by changeover of valve

High-pressure and large amount of water can be selected immediately. Therefore, the application will be expandable infinitely.
